The Alko 628325 is a extra tall jockey wheel with a 200mm (8") solid tyre. The zinc coated 48mm diameter shaft has 3 clamping positions providing a lift range of 370mm to 767mm between the ground and centre of drawbar. This unit is ideal for caravans or off road trailers which require extra height to level or to overcome parking on a slope.

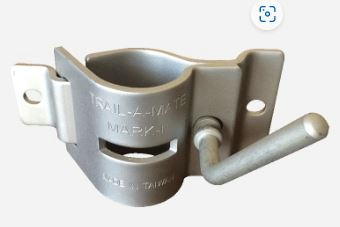

This unit does not include a clamp. It is suitable for use with the standard Alko clamp, or if you wish to increase the rating to 500kg the extra wide clamp is available. Both are listed as a related product below.

Static Capacity: 400kg
Wheel Size: 200mm (8") solid tyre
Weight: 7kg
Max Lift / Extension: 265mm
Minimum Ground Clearance(G1): 370mm (from centre of drawbar)
Maximum Ground Clearance(G2): 767mm (from centre of drawbar)
Overall Height Open: 995mm
Overall Height Closed: 730mm
Finish: Zinc Plated
Clamp: None Supplied - see related items below for Standard or Wide Clamps
Shipping Weight: 7.67 Kgs.
Shipping Dimensions: 80 cm x 21 cm x 11 cm
